Product No. 1517

Modular Magnetic Riser

DE
Modulare magnetische Erhöhung
Buy online Request a quote

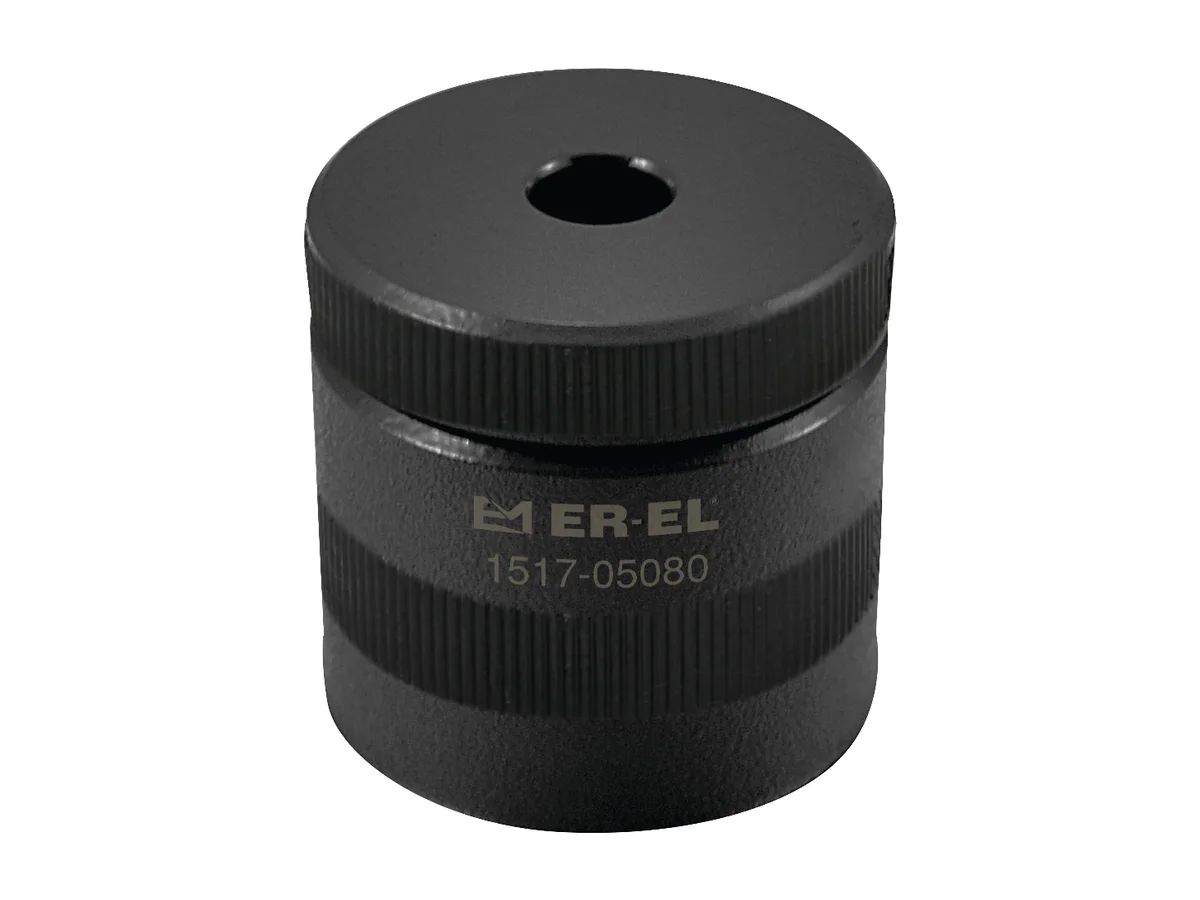

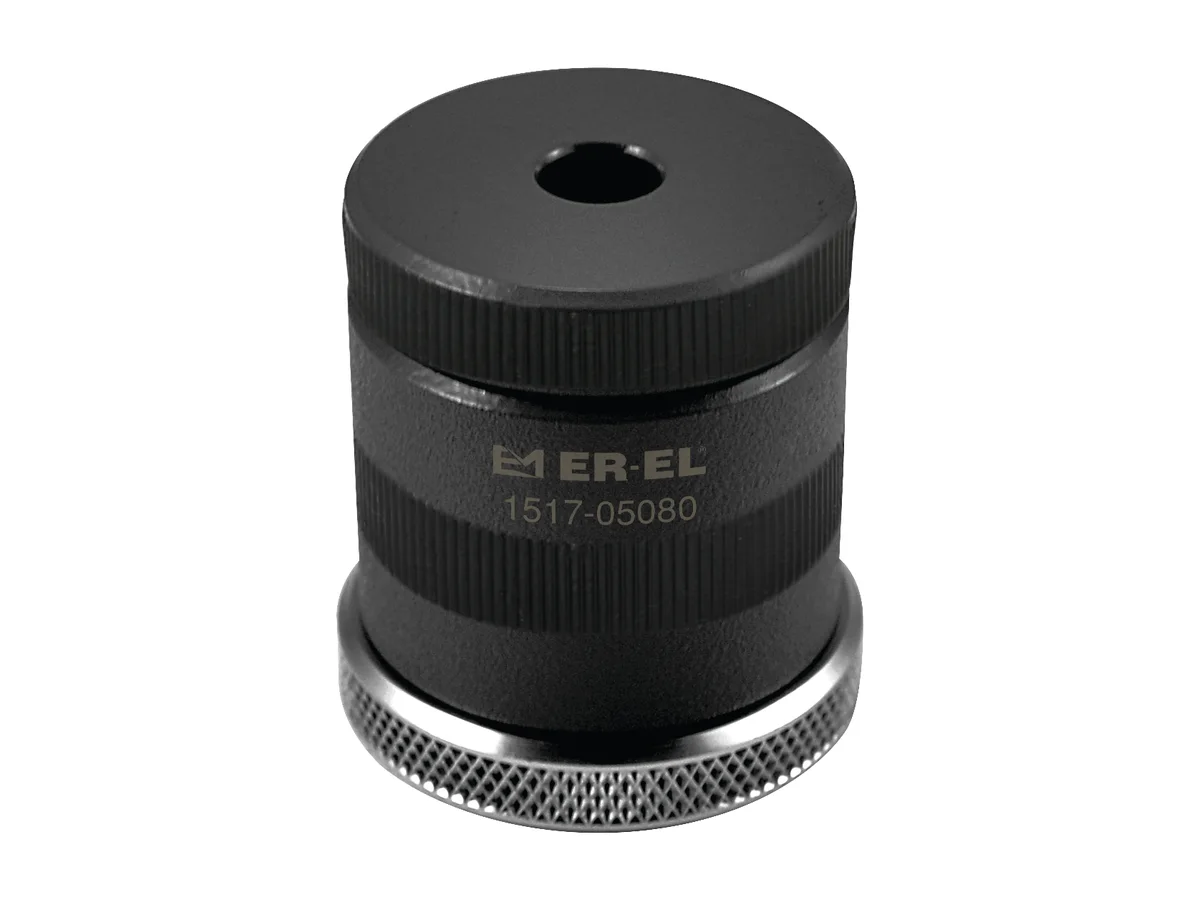

Modular Magnetic Riser — ER-EL product photo

3D Preview — rotate with the mouse

Catalog page (PDF) ↗

Technical Data

Dimensions and variants

3 variant · 8 dimension column

Buy
• Black coating
Technical dimension table for Modular Magnetic Riser. The dimension letters refer to the product's technical drawing.
Order No. H min-max. A H min-max. B TR d1 d2 d3 kgf (g) (g) Data
1517-04262 42-52 52-62 30x4 50 50 53.5 6000 700 Download
1517-05080 50-70 60-80 30x4 50 50 53.5 6000 770 Download
1517-70110 70-100 80-110 30x4 50 50 53.5 6000 1050 Download

Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.

Catalog page

Open in a new tab ↗ Download PDF ↓

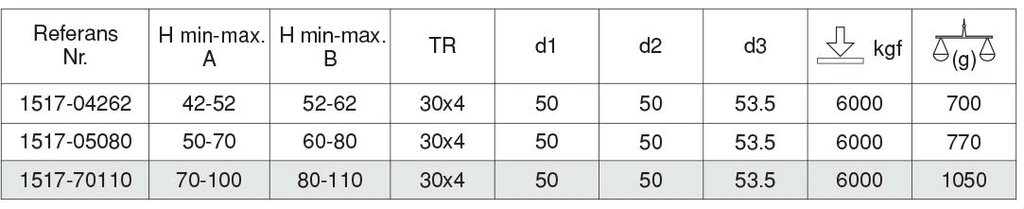

Show the printed table from the catalog
Modular Magnetic Riser — printed technical table from the catalog

Click to enlarge.
