Product No. 2070

Side Clamp Set with Slide

DE: Seitenspanner-Set mit Gleitschiene

Side Clamp Set with Slide — ER-EL product photo

• Thanks to the slide design of the movable jaw, it clamps the workpiece towards the stopper and down onto the plate. The wide jaw travel makes clamping and releasing the workpiece easier. • Compatible with DIN 650 T-slots • Jaw hardness : Hardened • Black coated • Set in a plastic case

3D Preview — rotate with the mouse

Catalog page (PDF) ↗

Technical Data

Dimensions and variants

5 variant · 20 dimension column

Buy

• Because of the sliding structure of the moving jaw it clamps the work piece in the direction of resting and plate. Wide movement of the jaw provides convenience in coupling and dismantling of the workpiece. • It is in compliance with DIN 650 T-Slot • Hardness of jaw: Hardened • Black coating • Set is in the plastic box

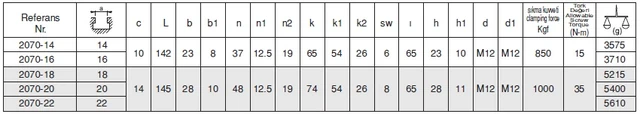

Technical dimension table for Side Clamp Set with Slide. The dimension letters refer to the product's technical drawing.
Order No.	>a<	c	L	b	b1	n	n1	n2	k	k1	k2	sw	ı	h	h1	d	d1	kgf	N-m (N·m)	(g) (g)	Data
2070-14	14	10	142	24	8	37	12.5	18.5	65	54	26	6	65	23	10	M12	M12	850	15	3575	Download
2070-16	16	10	142	24	8	37	12.5	18.5	65	54	26	6	65	23	10	M12	M12	850	15	3710	Download
2070-18	18	14	145	28	10	48	12.5	18.5	74	56	26	8	65	28	11	M12	M12	1000	35	5215	Download
2070-20	20	14	145	28	10	48	12.5	18.5	74	56	26	8	65	28	11	M12	M12	1000	35	5400	Download
2070-22	22	14	145	28	10	48	12.5	18.5	74	56	26	8	65	28	11	M12	M12	1000	35	5610	Not yet available

Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.
