Product No. 2139
One-Touch Side Clamp
- DE
- Ein-Griff-Seitenspanner
3D Preview — rotate with the mouse
Catalog page (PDF) ↗Technical Data
Dimensions and variants
2 variant · 26 dimension column
Buy• Black coating
• The cam handle allows fast clamping in single operation.
• Precision-ground jaw is perfect for clamping the workpiece on its finished surface.
• In clamping, the jaw provides downward force to prevent part lift.
| Order No. | W1 | W2 | h1 | H2 | m | P1 | H4 | L4 (mm) | W | L3 | H5 | d | L5 (mm) | P | h | L | L2 | R | L1 | H3 | m1 | >a< | Clamping Stroke | Operating Load (N) | Clamping Force Kgf | (g) (g) | Data |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2139-32150 | 45 | 15 | 27 | 18 | M4x0.7 | 30 | 18 | 13 | 75 | 20 | 8 | 6.6 | 3 | 60 | 32 | 51 | 48 | 63 | 51.5 | 18 | M4x0.7 | 19 | 1.6 | 150 | 200 | 620 | Download |
| 2139-40200 | 60 | 20 | 33 | 22 | M5x0.8 | 40 | 22 | 17 | 100 | 26 | 10 | 8.6 | 4 | 80 | 40 | 67 | 63 | 80 | 67 | 22 | M5x0.8 | 24 | 2.2 | 200 | 300 | 1360 | Download |
Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.
Catalog page

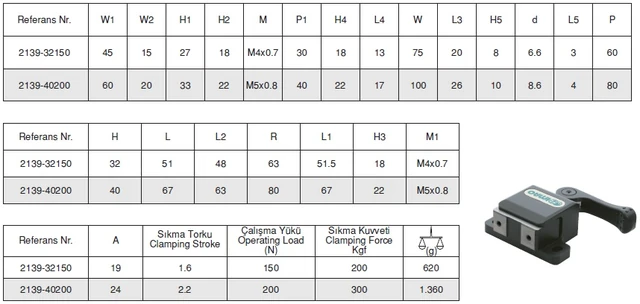

Show the printed table from the catalog
