Product No. 1205

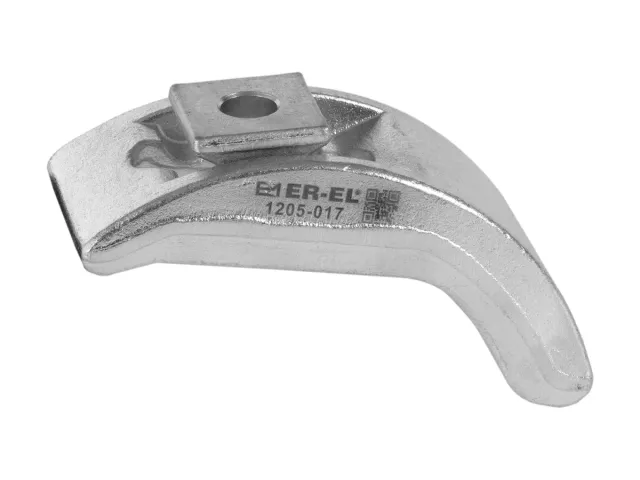

Stepped Coupling Clamp
- DE
- Spanneisen abgestuft
• Allows use between 15-85mm without a support • Material: Forged steel • Hardened • Zinc plated
3D Preview — rotate with the mouse
Catalog page (PDF) ↗Technical Data
Dimensions and variants
11 variant · 11 dimension column
Buy| Order No. | b1 | >a< | DIN 787 | m | h | b x L | c | d | e1 | k x3 | g | Data |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1205-017 | 17 | 16-18 | - | 93 | 15-50 | 65x165 | 39 | 128 | 30 | 17 | 2100 | Download |
| 1205-021 | 21 | 20-22 | - | 111 | 20-65 | 75x189 | 43 | 146 | 33 | 19 | 3200 | Download |
| 1205-025 | 25 | 24-28 | - | 126 | 20-75 | 85x213 | 49 | 164 | 39 | 21 | 4500 | Download |
| 1205-031 | 31 | 36 | - | 143.5 | 20-85 | 95x238 | 56 | 182 | 46 | 23 | 6300 | Download |
| 1205-016 | 17 | 16 | M16x16x125 | 93 | 15-50 | 65x165 | 39 | 128 | 30 | 17 | 2500 | Not yet available |
| 1205-018 | 17 | 18 | M16x18x125 | 93 | 15-50 | 65x165 | 39 | 128 | 30 | 17 | 2500 | Not yet available |
| 1205-020 | 21 | 20 | M20x20x160 | 111 | 20-65 | 75x189 | 43 | 146 | 33 | 19 | 3900 | Not yet available |
| 1205-022 | 21 | 22 | M20x22x160 | 111 | 20-65 | 75x189 | 43 | 146 | 33 | 19 | 3900 | Not yet available |
| 1205-024 | 25 | 24 | M24x24x200 | 126 | 20-75 | 85x213 | 49 | 164 | 39 | 21 | 5700 | Not yet available |
| 1205-028 | 25 | 28 | M24x28x200 | 126 | 20-75 | 85x213 | 49 | 164 | 39 | 21 | 5700 | Not yet available |
| 1205-036 | 31 | 36 | M30x36x250 | 143.5 | 20-85 | 95x238 | 56 | 182 | 46 | 23 | 8800 | Not yet available |
Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.
